Product Motorcycle

Motorcycle

Wiring Harness

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

Wire Harness Unit Stator

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

Main Harness

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

Switch Cord Assy

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

Sub Harness Speedometer

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

LED Harness Assy

wiring harnesses motorcycle component build and production by CMW Citra Mandiri Wirasakti Indonesia

Stator Sensor

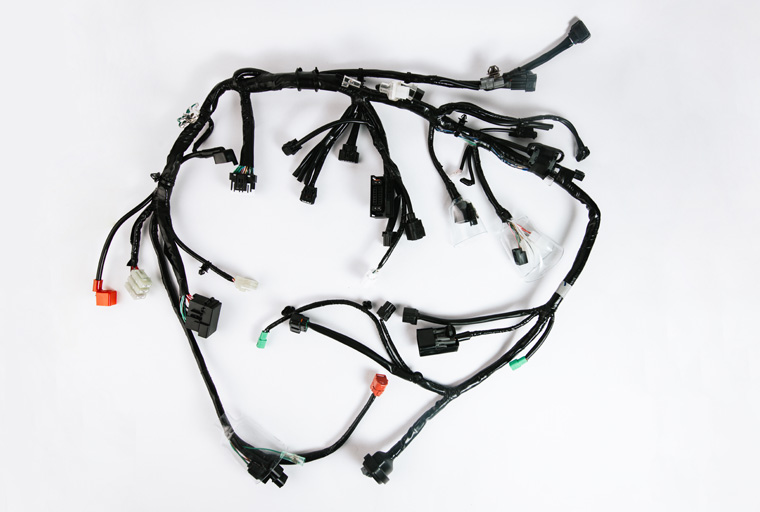

Main Harness

is a bundled assembly of insulated electrical wires encased in a protective sheath, running from the front to the rear of the motorcycle frame. It functions as the central nervous system of the vehicle. It distributes electrical power and control signals from the power sources (battery and stator/alternator) to every electrical component on the motorcycle, such as the ignition, ECU/ECM, lighting, and instrument cluster.

Main Harness

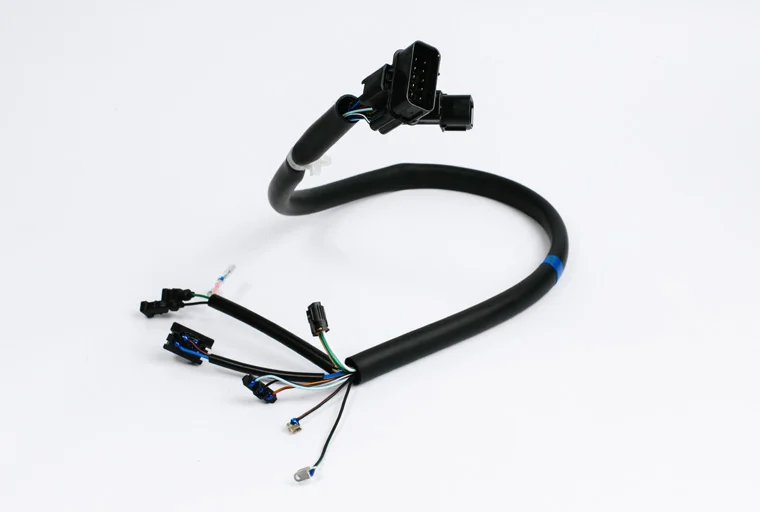

Cord Assy

is a pre-assembled, flexible electrical cable equipped with factory-fitted connectors, plugs, or terminal lugs at one or both ends, ready for direct plug-and-play installation. In both automotive engineering and general electronics, a Cord Assy serves as a modular power or signal conduit that connects specific standalone components, external accessories, or power inputs to the main electrical system.

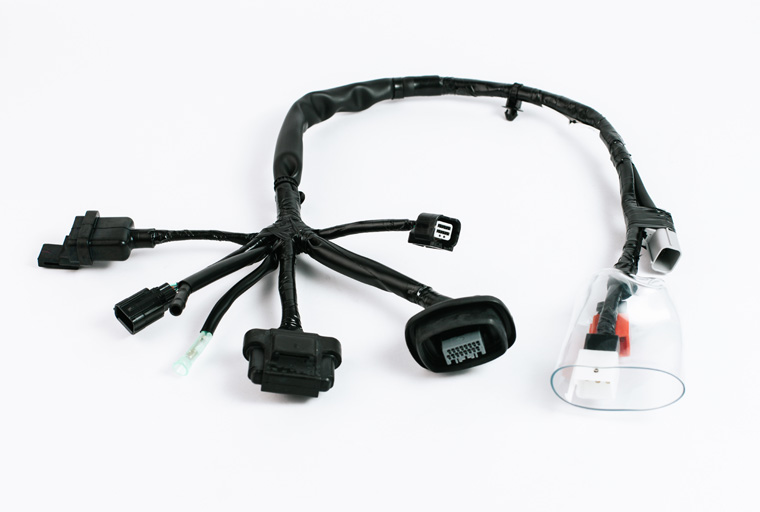

Switch Harness Engine

Sub Harness Speedometer

A speedometer sub-harness is a secondary wiring harness (a small auxiliary cable assembly) that connects the main vehicle wiring harness to the instrument cluster or speedometer assembly. It is designed as a modular, detachable component separate from the main body harness. This allows for easier installation, maintenance, and replacement if damage occurs around the handlebars or dashboard area, without needing to replace the entire body wiring system.

Sub Harness Speedometer

Sub Harness Batt

Stands for Sub Harness, Battery, which is a secondary wiring harness connected directly from the battery terminals to the vehicle's electrical system. This component consists of a short, heavily insulated wire assembly designed to carry high electrical currents safely. It features terminal rings or clamps on one end to attach to the battery posts and a plug connector on the other end to connect to the main wiring harness or fuse box.

Sub Harness Batt

Sub Harness, FR Stop SW

Stands for Sub Harness, Front Stop Switch, which is a secondary wiring harness that connects the front brake lever switch to the vehicle's main wiring harness. This component is a short, insulated connection cable equipped with connectors at both ends. Positioned around the front handlebar assembly, its modular design helps keep the vehicle's front electrical wiring clean and organized.

Sub Harness FR Stop SW

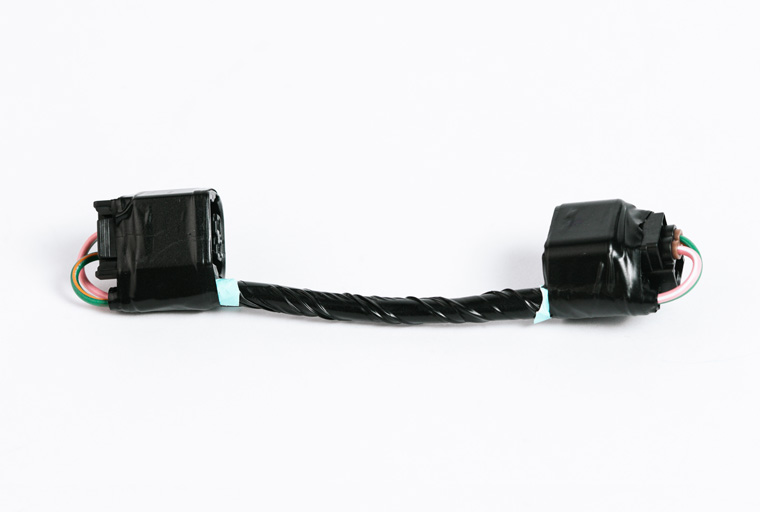

LED Harness Assy

is a specialized electrical wiring bundle designed specifically to route power and control signals from the motorcycle's main electrical system directly to the LED lighting units (such as headlights, taillights, or daytime running lights). It functions as the dedicated power and signal conduit for the LED system. Because LEDs require stable DC voltage and are sensitive to electrical surges, this harness ensures that regulated, safe electrical current reaches the LED modules.

LED Harness Assy

Wire Harness Unit Stator

is a stationary ring of copper wire windings mounted directly inside the motorcycle's engine casing. Unlike a traditional stator coil, the ASG Stator serves a dual-function (2-in-1) role. It acts as an electric starter motor to crank the engine when you press the ignition button, and seamlessly transforms into an electrical generator (alternator) once the engine is running.

Stator ACG

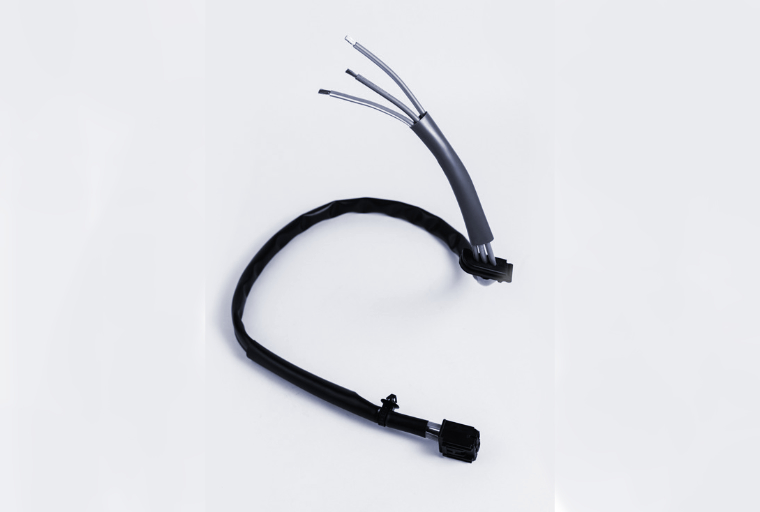

Wire Harness Unit Sensor

is a compact, high-precision wiring assembly designed specifically to link various engine sensors directly to the Electronic Control Unit (ECU/ECM) or to the main wiring harness. It functions as a dedicated data transmission pathway. Because sensor signals operate on micro-currents and low voltages, this harness carries real-time engine operating parameters from the sensors to the ECU so the fuel injection and ignition timing can be continuously adjusted with high accuracy.

Stator Sensor

Partner with CMW
Your Wiring Harness Solution

CMW is not only a trusted manufacturer of motorcycle wiring harnesses, but also a reliable partner for businesses and distributors worldwide. Whether you need ready-to-use products or custom bulk production, we provide scalable solutions tailored to your needs.
